Product Highlights

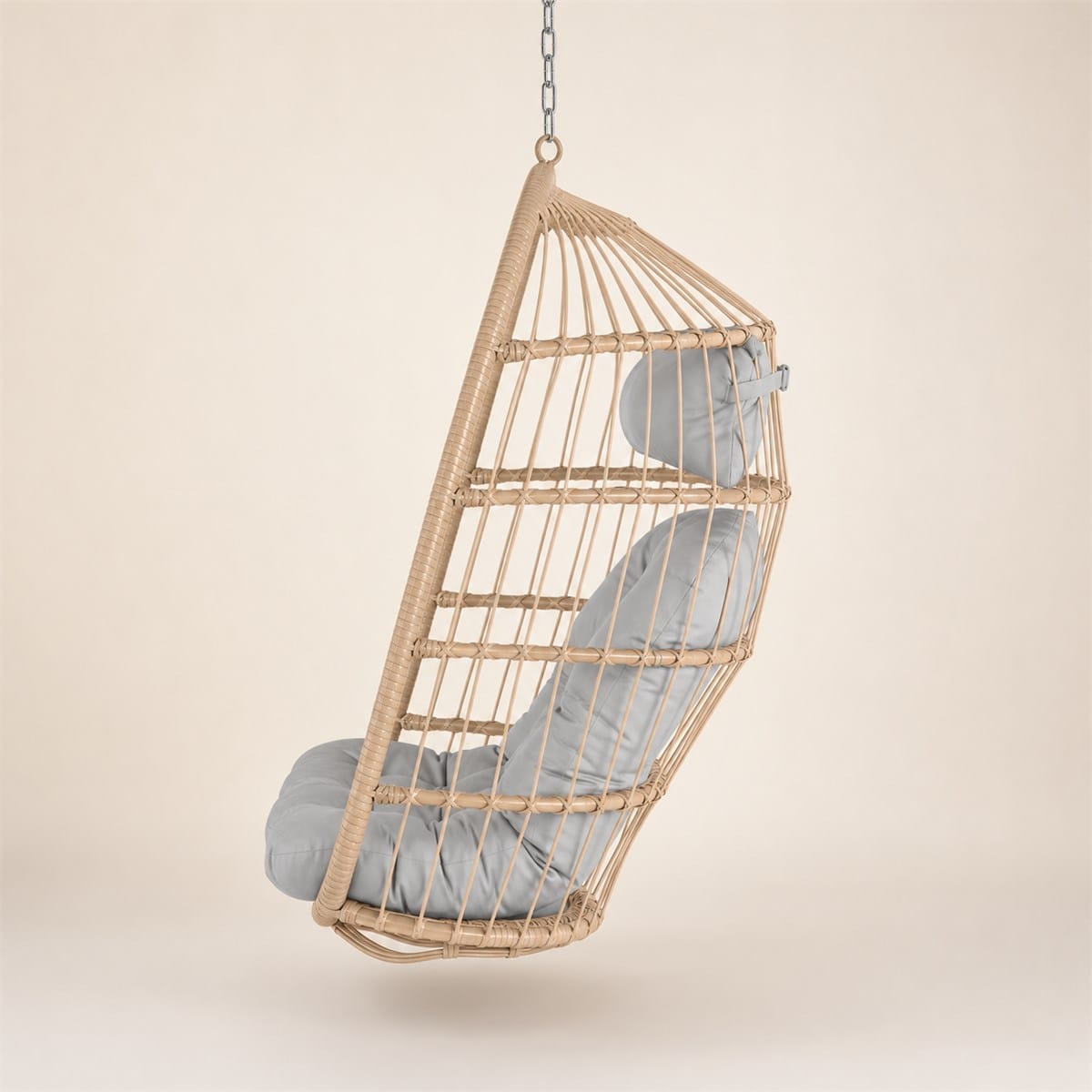

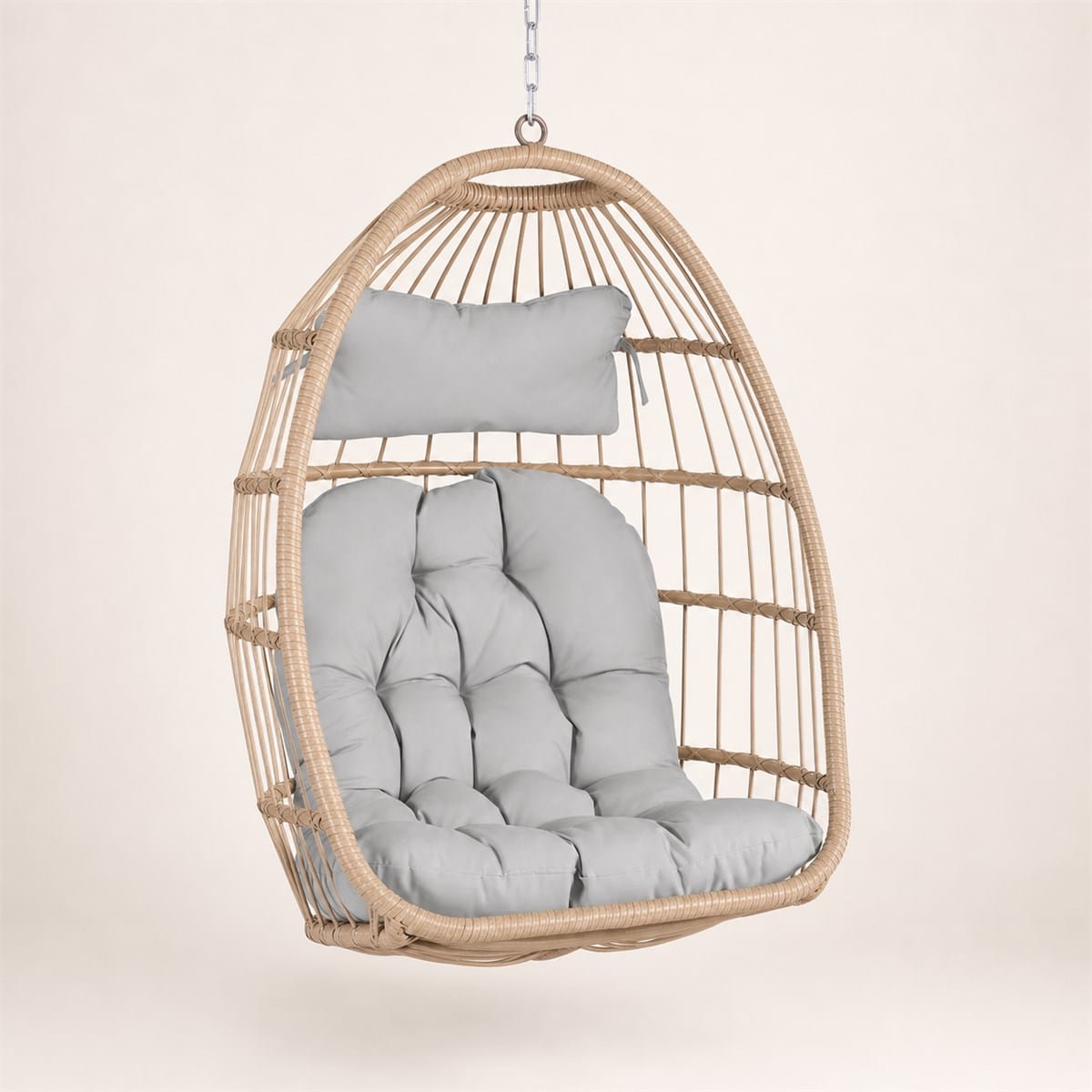

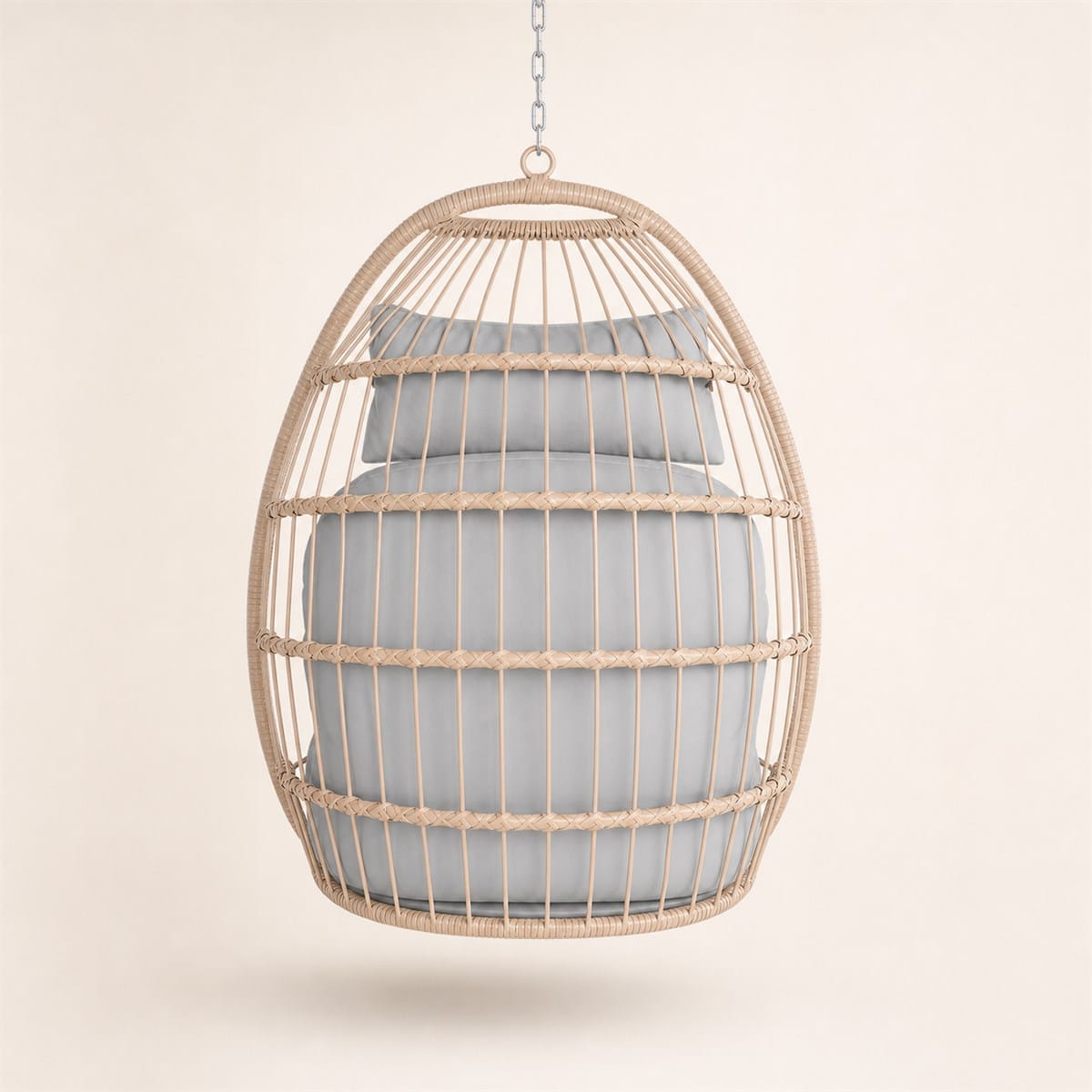

WN-EC07 is a single-seat ceiling-mounted hanging egg chair that keeps the floor clear by suspending its light-beige woven basket from a verified overhead structure. The open vertical weave, gray tufted cushion and compact basket suit covered patios, pergolas, bedrooms, reading corners and hospitality projects. The chair-side hardware can be reviewed with the order, while the building anchor and supporting structure must be specified and approved for the installation site.
- Floor-free hanging configuration for covered residential and hospitality spaces
- Open light-beige PE-rattan weave with a gray full cushion and head pillow
- Single suspension point supports adjustable hanging height and gentle swing movement
- Chair-side chain and connector package can be reviewed for wood or concrete installation plans
- Final basket dimensions, tested load, anchor system and packing confirmed before quotation
Dimensions & Specifications
Comparable no-stand market reference / customizable. A comparable single-seat hanging basket is published at approximately 74 W × 65 D × 108 H cm with a 350 lb (about 159 kg) capacity. These figures are planning references only. The approved WN-EC07 drawing, ordered frame, chair-side hardware and load test take precedence. The ceiling or beam anchor must be designed for the actual substrate and local requirements.
- Model: WN-EC07
- Seating: Single-seat ceiling or beam-mounted hanging chair
- Basket: Open rounded PE-rattan weave over a reinforced steel frame
- Comparable basket size: Approx. 74 W × 65 D × 108 H cm*
- Comparable maximum load: Up to 350 lb / approximately 159 kg*

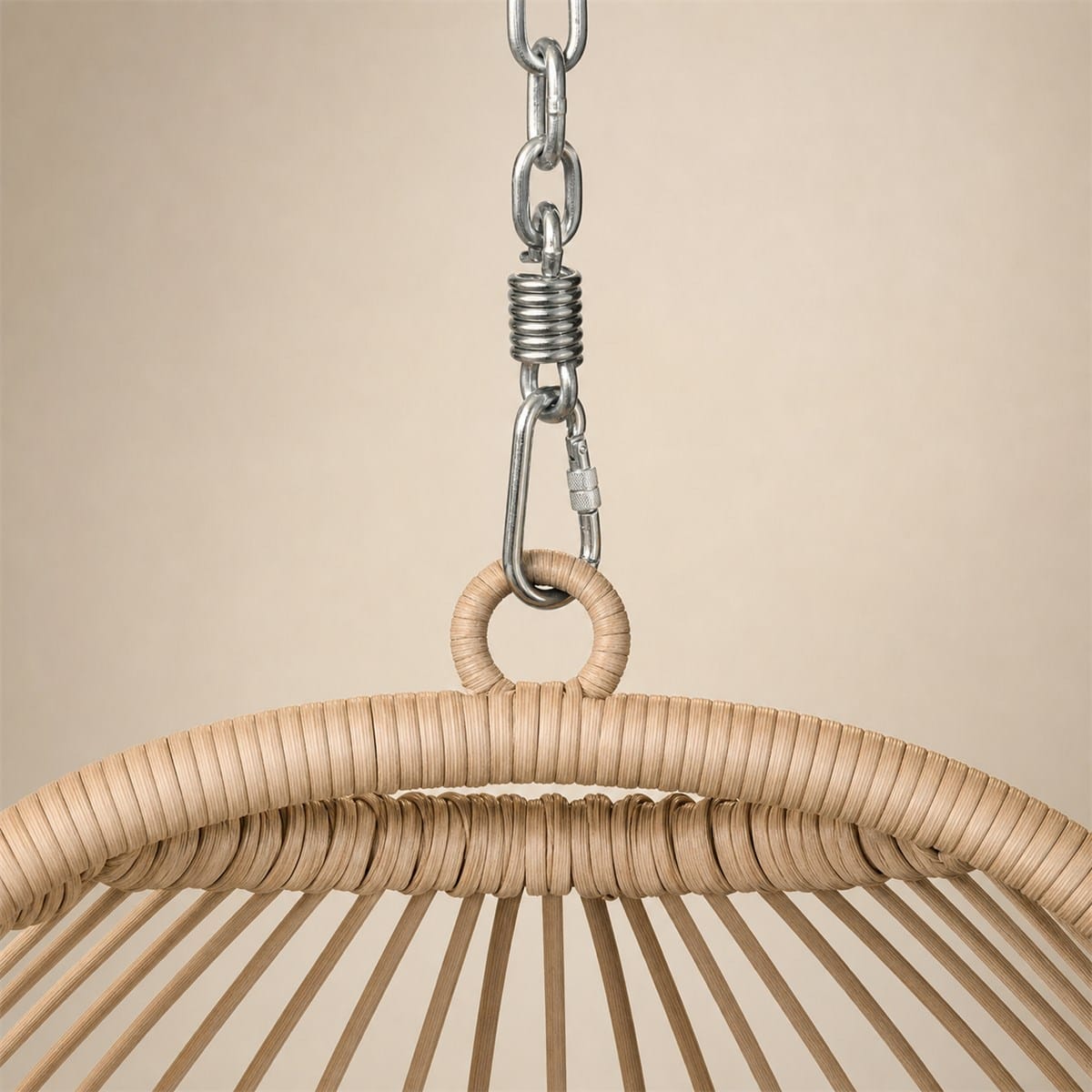

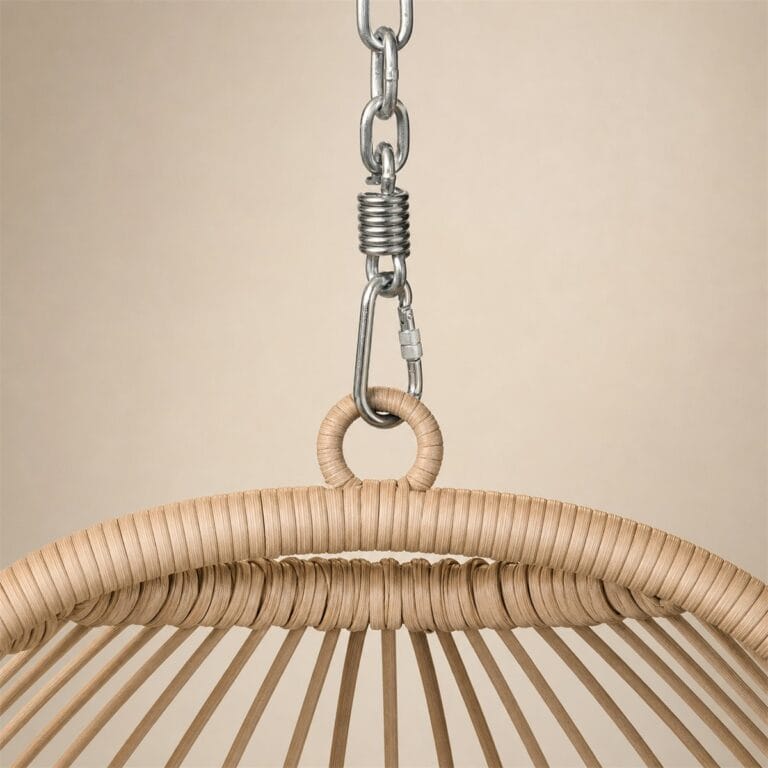

- Suspension: Single upper eye with chain and connector package subject to order
- Overhead anchor: Selected separately for verified timber, concrete or project structure
- Exact net weight, carton dimensions and loading quantity: Pending approved packing test
Materials & Color Options
Reference construction / installation confirmation. Final frame tube, welds, hanging eye, chain grade, connector, weave specification, cushion fabric and filling must be approved against the sample and purchase specification. The supporting beam, ceiling, pergola or other structure is outside the chair product and must be assessed by a qualified local installer.
- Basket frame: Powder-coated steel perimeter and reinforcement rails; tube sizes, welds and hanging eye confirmed by drawing and load test.
- Woven surface: Light-beige outdoor PE rattan with open vertical strands and wrapped perimeter rails; color and weave approved by sample.
- Suspension set: Chain, connector and optional spring reviewed against ordered capacity; ceiling or beam anchor selected for the actual substrate.
- Cushion set: Gray tufted seat/back cushion and rectangular head pillow with fabric, filling and care labeling available for OEM review.
Recommended Applications

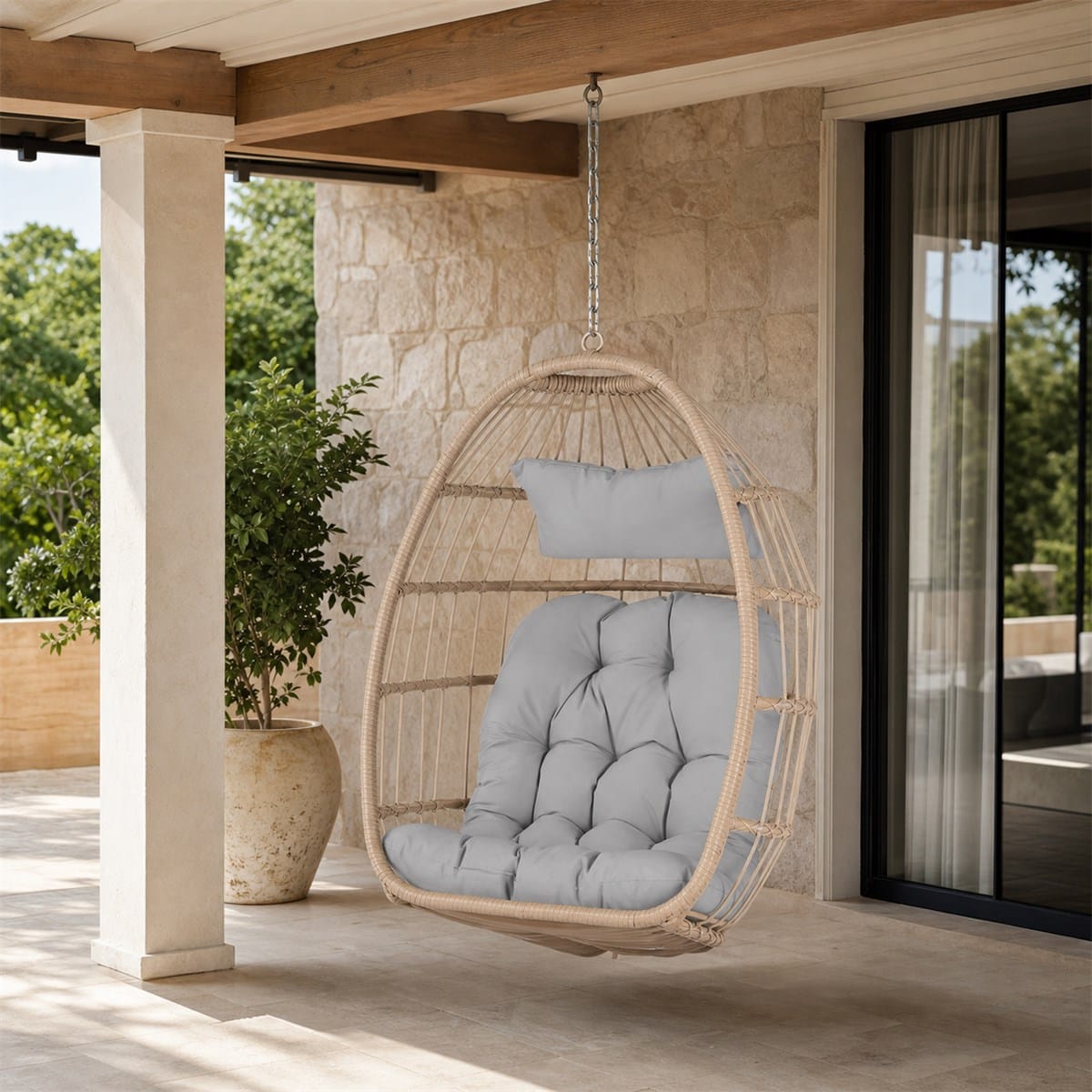

WN-EC07 is intended for covered porches, pergolas, hotel verandas, resort leisure zones, bedrooms and indoor reading corners where a floor-free installation is preferred. Project planning must account for structural capacity, anchor type, finished seat height, swing clearance, nearby walls, weather exposure and periodic hardware inspection.
Patio & Covered Outdoor
For patios and covered outdoor leisure collections where the final coating, weave and fabric specification is approved for the destination climate.
Balcony & Apartment
The single-seat format and foldable basket support compact residential, balcony and apartment furniture programs.
Indoor Leisure & Retail
Suitable for bedrooms, reading corners, showrooms and e-commerce assortments where storage-efficient packing is important.
Hotel & Resort Projects
Frame color, rattan, cushion, labels and packaging can be reviewed for hospitality and commercial leisure projects.
Export Packaging & Container Planning

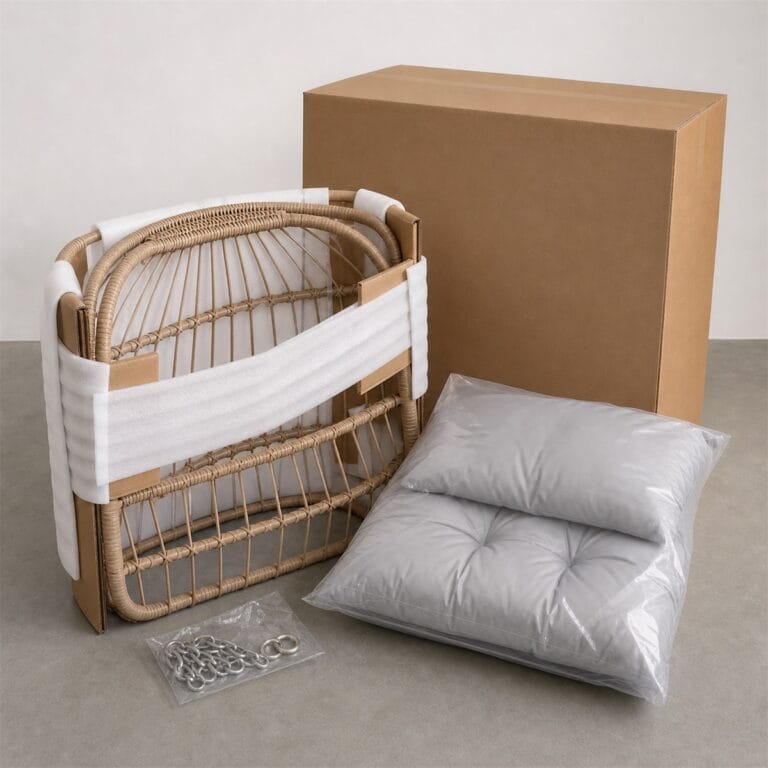

Reference export packing concept / final confirmation required. The basket may use a foldable, nested or protected assembled configuration depending on the approved construction. Cushions are bagged separately, and chain and connector parts are isolated to prevent surface damage. Final carton count, dimensions, gross weight, drop protection and container loading must be verified by a packing test.
Foldable Basket
Space-saving basket configuration for storage and packing review
Knock-Down Stand
Separated steel tubes and base legs protected for transport
1 Set / Carton
Reference format subject to the approved packing test
Loading Plan
Final quantity confirmed after carton size and stacking approval
OEM & Customization Support
OEM options can include rattan color, powder-coating finish, cushion fabric, filling, woven labels, instruction manuals, care labels and carton artwork. Suspension hardware is reviewed against the ordered chair rating, while the site-specific overhead anchor remains subject to the structural substrate, local practice and installer approval.
Colors & Materials
Review frame finish, powder-coating color, rattan color, weaving pattern, cushion fabric, color, filling and thickness for the approved product program.
Brand & Labels
Private label, product identification, barcode and retail label requirements can be prepared for review.
Packaging & Documents
Carton printing, packaging configuration, instruction manual and related labeling are confirmed for the ordered market.
Sample & Approval
Selected options are consolidated into the quotation and approved sample before final mass-production release.
Quality Control Before Shipment
WN-EC07 inspection focuses on basket symmetry, hanging-eye reinforcement, weld quality, frame coating, weave tension, cushion workmanship, chain and connector condition, balance under suspension and packing protection. Production inspection does not replace verification of the customer’s ceiling, beam, pergola or other supporting structure.
Frame & Weld Check
Review frame dimensions, welding points, structural appearance and alignment against the approved construction.
Finish, Weave & Cushion
Check coating coverage and consistency, rattan tension and edge finishing, plus cushion dimensions, stitching and filling.
Assembly, Fold & Load Review
Confirm assembly fit, basket folding and locking points, product stability and the load-test requirements for the approved configuration.
Final Packing Inspection
Verify quantity, labels, accessories, hardware, instructions and export-carton protection before release.
Product FAQ
Does WN-EC07 include a freestanding stand?
No. WN-EC07 is designed as a no-stand hanging basket for a verified ceiling, beam, pergola or compatible project structure. A separate stand should only be used if its geometry and tested capacity are approved for the chair.
What type of ceiling anchor is required?
The correct anchor depends on whether the structure is concrete, solid timber, engineered framing or another substrate. The supporting structure and anchor should be selected and approved by a qualified local installer; a universal anchor must not be assumed.
What clearance is needed around the chair?
The installation plan should allow safe movement around the basket and prevent contact with walls, glazing, railings and furniture. Final clearance depends on chain length, seat height, user movement and project requirements.
Can the rattan and cushion colors be customized?
Yes. PE-rattan tone, frame coating and cushion fabric can be reviewed for OEM orders, subject to quantity, material availability and approved samples.
What is the MOQ and can I order a sample?
MOQ depends on the basket frame, weave, cushion, hardware and packaging. A sample can be reviewed before bulk production, with configuration, sample cost, testing and freight confirmed separately.
How are load capacity and installation safety confirmed?
A comparable no-stand chair is published up to 350 lb, but the WN-EC07 rating must come from the approved construction and load test. The customer’s supporting structure and anchor require separate site verification.
